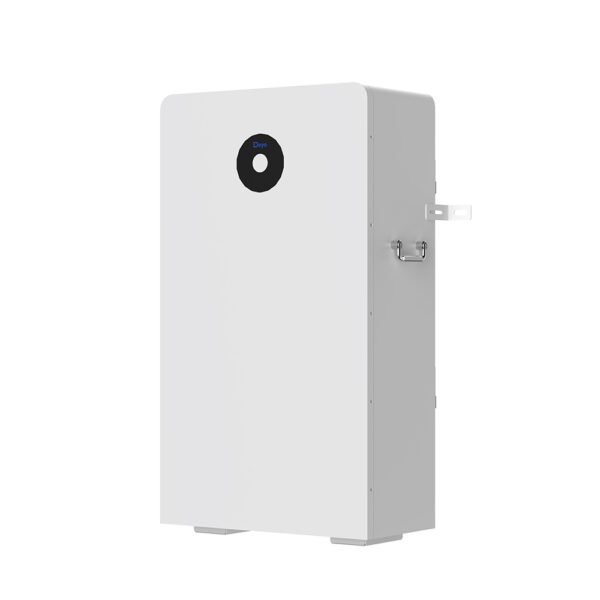

Deye Lithium Battery 314Ah 51.2V Wall Mounted 16KWh RW-F16 LiFePO4-LV
,

Deye Lithium Battery 314Ah 51.2V Wall Mounted 16KWh RW-F16 LiFePO4-LV

Add to wishlist
  • High Power Output: Delivers up to 8 kW with the ability to connect up to 32 units, scalable to 512 kWh.
  • Long-lasting Battery Life: Utilizes LiFePO4 technology with over 6000 cycles, ensuring durability and longevity.
  • Built-in Circuit Protection: Features a built-in circuit breaker for safe charging (160A) and discharging (160A).
  • Wide Operating Range: Capable of charging from 0℃ to 55℃ and discharging from -20℃ to 55℃.
  • Remote Management: Supports remote monitoring and firmware upgrades via Deye inverter.
  • Flexible Installation: Suitable for both wall-mounted and floor-mounted setups.
  • Efficient Energy Use: Achieves 90% round-trip efficiency with a nominal usable energy of 14.4 kWh.
  • Robust Design: IP20 rating, designed for indoor use with high humidity tolerance (up to 95%).

د.إ 8,050.00 د.إ 9,040.00

Deye RW-F16 Lithium Battery – 14.4kWh | 60V | LiFePO4

Reliable. Scalable. Smart.
The Deye RW-F16 is a high-performance residential energy storage system featuring advanced LiFePO4 battery technology, designed to provide safe, efficient, and sustainable power backup.

✅ Key Features:

  • Output Power: 8kW per unit (up to 32 units in parallel, scalable to 512kWh)

  • Battery Type: Lithium Iron Phosphate (LiFePO4), over 6000 cycles @ 90% DoD

  • Integrated Circuit Breaker: 160A charge/discharge protection

  • Wide Operating Range:

    • Charge: 0℃ to 55℃

    • Discharge: -20℃ to 55℃

  • Smart Monitoring: Supports remote monitoring & firmware updates via Deye inverter

  • Installation: Wall-mounted or floor-mounted design for flexible placement

🔧 Technical Specifications:

  • Model: RW-F16

  • Nominal Voltage: 60V DC

  • Capacity: 125Ah

  • Usable Energy: 14.4kWh @ 90% DoD

  • Cycle Life: ≥6000 cycles @ 25℃

  • Efficiency: 90% round-trip

  • Dimensions: 480mm (W) × 830mm (H) × 235mm (D)

  • Weight: ~122kg

  • IP Rating: IP20 – Indoor use

  • Humidity: Up to 95%

  • Altitude: Operates below 2000m

🏠 Typical Applications:

  • Home energy storage

  • Backup power during grid outages

  • Peak shaving and load shifting

  • Solar PV system integration

Upgrade your energy system with the Deye RW-F16 – a smart investment for sustainable and uninterrupted power.
