Fsolar Neo 350 Watts Solar Panel Mono-Crystalline

FSolar NEO 350W Monocrystalline Solar Panel – FSPV350W

The FSolar NEO 350W Monocrystalline Solar Panel (FSPV350W) is a high-performance photovoltaic module engineered for reliable solar energy generation across residential, commercial, off-grid, hybrid, agricultural, caravan, and remote-power applications.

Designed with monocrystalline cell technology, the panel delivers a maximum rated output of 350W under Standard Test Conditions (STC). It combines efficient power generation with a robust mechanical structure, anti-PID design, improved hot-spot resistance, and strong resistance to demanding outdoor environments.

High-Efficiency 350W Solar Output

The FSolar NEO 350W is rated at 350 watts maximum power. According to the datasheet, the module operates at an optimum voltage of 43.49V and optimum operating current of 8.05A, with an open-circuit voltage of 49.18V and short-circuit current of 8.88A.

The datasheet lists a 22.1% wafer efficiency, helping the module provide strong power generation from a relatively compact panel size.

Multiple Main Gate Technology

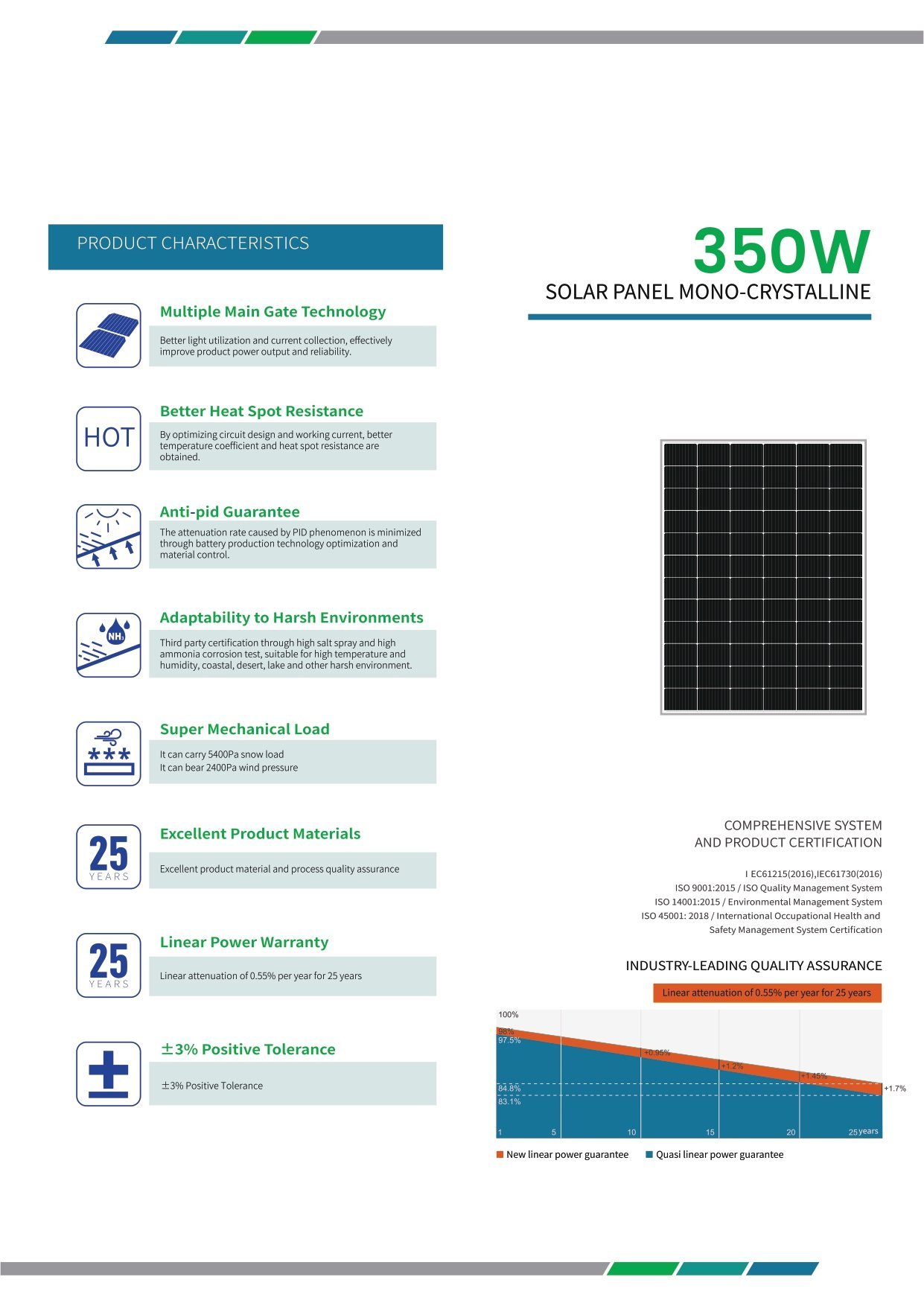

FSolar uses Multiple Main Gate Technology to improve light utilization and current collection. According to the product characteristics on page 2, this design is intended to improve power output and overall module reliability.

Improved Hot-Spot Resistance

The panel is engineered with optimized circuit design and working current characteristics to provide improved resistance against hot spots.

This is particularly important for long-term module reliability, as localized overheating can negatively affect solar-cell performance and panel durability.

Anti-PID Protection

The FSolar NEO 350W includes an Anti-PID design. The datasheet states that potential-induced degradation is minimized through battery-production technology optimization and material control.

This helps maintain more stable module performance over extended periods of operation.

Designed for Harsh Outdoor Environments

The module has undergone third-party certification testing related to harsh operating conditions, including salt-spray and high-ammonia-corrosion environments.

According to the datasheet, it is suitable for applications involving high temperature, humidity, coastal conditions, desert environments, lakes, and other demanding locations.

Strong Mechanical Load Capability

The FSolar NEO 350W is designed for demanding structural conditions, with mechanical load ratings of:

• 5400Pa snow load
• 2400Pa wind pressure

This makes the module suitable for properly engineered rooftop, ground-mount, and outdoor solar installations where mechanical durability is important.

Durable Construction

The module uses 3.2mm high-permeability anti-reflection coated tempered glass on the front and an anodized aluminium-alloy frame.

The datasheet lists a white backboard, helping provide a durable and professional module construction suitable for long-term outdoor installation.

Wide Operating Temperature Range

The FSolar NEO 350W is rated for operation between:

-40°C and +85°C

This wide temperature range makes the module suitable for installations exposed to both high-temperature and low-temperature environmental conditions.

1000V DC Maximum System Voltage

The module supports a maximum system voltage of 1000V DC, allowing it to be integrated into appropriately designed photovoltaic arrays.

Its maximum fuse-rated current is listed as 25A. Final string sizing, inverter compatibility, cable selection, and protection devices should always be designed according to the overall system voltage and current requirements.

Temperature Performance

The datasheet specifies the following temperature characteristics:

These values describe how module electrical performance changes as operating temperature varies.

Long-Term Power Assurance

The product literature highlights a 25-year linear power warranty, with linear attenuation stated at 0.55% per year for 25 years.

The datasheet also highlights excellent product materials and process-quality assurance, supporting long-term use in solar installations.

Key Features

• 350W maximum rated power
• Monocrystalline solar-cell technology
• Model: FSPV350W
• Multiple Main Gate Technology
• Improved hot-spot resistance
• Anti-PID design
• Designed for harsh environmental conditions
• 5400Pa snow-load capability
• 2400Pa wind-pressure capability
• 3.2mm anti-reflection coated tempered glass
• Anodized aluminium-alloy frame
• Maximum system voltage: 1000V DC
• Maximum fuse rating: 25A
• Operating temperature: -40°C to +85°C
• 25-year linear power warranty
• ±3% power tolerance stated in the electrical specifications

Technical Specifications

All specifications above are taken from the supplied FSolar datasheet.

Suitable Applications

The FSolar NEO 350W Solar Panel can be used in appropriately designed solar systems for:

Residential solar systems, hybrid and off-grid installations, battery-charging systems, caravans and mobile applications, farms and agricultural facilities, commercial buildings, remote-area power systems, telecommunications projects, cabins, outdoor facilities, and other photovoltaic applications.

Product Summary

The FSolar NEO 350W FSPV350W combines 350W monocrystalline solar output, robust mechanical construction, anti-PID protection, improved hot-spot resistance, harsh-environment adaptability, and a 25-year linear power warranty in a compact 1540 × 1134 × 30 mm module.

It is designed as a professional solar-energy solution for projects requiring reliable PV generation, outdoor durability, and long-term performance.
