Modi Solar Street Light 600W MD-SLT66600W

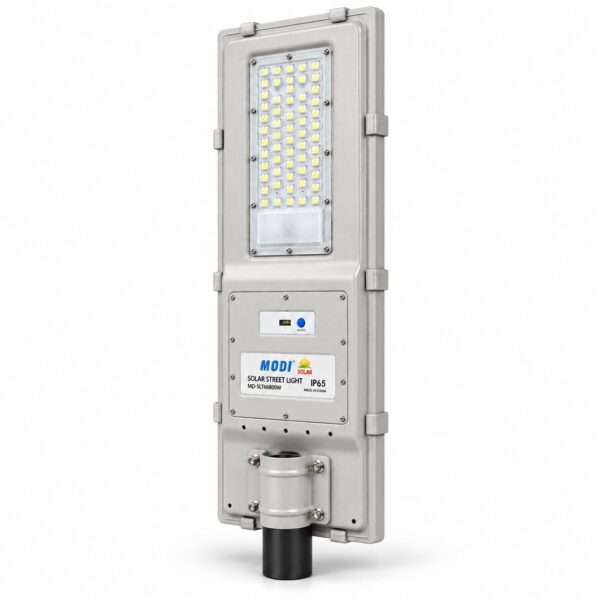

MODI MD-SLT66600W Solar LED Street Light

The MODI MD-SLT66600W, part of the MD-SLT66 Series, is an integrated solar LED street lighting solution developed for reliable and convenient outdoor illumination without requiring conventional electrical wiring.

The system combines an SMD LED lighting module, monocrystalline solar panel, rechargeable battery, built-in light sensor, remote control, and weather-resistant housing in one compact design. This makes it suitable for locations where installing electrical cables is difficult, costly, or unnecessary.

Efficient Solar-Powered Operation

The MD-SLT66600W uses a 4.5V 20W solar panel to collect solar energy during daylight hours and charge the integrated battery.

According to the supplied specification sheet, normal solar battery charging requires approximately 3–4 hours, allowing the lighting system to store energy for nighttime operation. The product is designed as a wiring-free solar lighting solution, helping reduce dependence on grid electricity.

3.2V 15Ah Integrated Battery

The MD-SLT66600W is equipped with a 3.2V 15Ah battery.

When fully charged, the product is specified to provide approximately 10–12 hours of working time, making it suitable for overnight outdoor illumination in appropriately designed installations.

Designed for Cloudy and Rainy Conditions

The specification sheet indicates approximately 3–5 days of continuous cloudy and rainy day support.

This stored-energy capability helps maintain lighting operation during periods when solar charging conditions are less favorable. Actual performance will depend on installation location, sunlight availability, operating mode, battery condition, and environmental conditions.

Automatic Light Sensor

The MD-SLT66600W includes a built-in optical/light sensor.

The product is designed to remain switched off during daylight hours and automatically operate when lighting is required at night, helping improve energy efficiency and simplify daily operation.

Remote & Switch Control

The lighting system supports:

• Optical control
• Remote control
• Switch control

The remote control allows users to manage the light and select operating periods including 3-hour, 5-hour, or 8-hour lighting modes, according to the product literature.

SMD LED Light Source

The unit uses an SMD LED light source with a specified 6500K color temperature, providing a cool-white lighting appearance suitable for outdoor security, pathways, parks, yards, and street-lighting applications.

90° Beam Angle

The product literature indicates a 90° beam angle, designed to distribute illumination across the intended outdoor lighting area.

Monocrystalline Solar Technology

The MD-SLT66 Series is described as using a monocrystalline silicon solar panel.

This solar panel is integrated into the lighting system to support efficient charging, fast energy collection, and completely independent solar operation without conventional electrical wiring.

IP65 Weather Protection

The product is marked with an IP65 protection rating, making it suitable for outdoor use where resistance to dust and water exposure is required.

The manufacturer also highlights a double waterproof design intended to improve overall weather resistance.

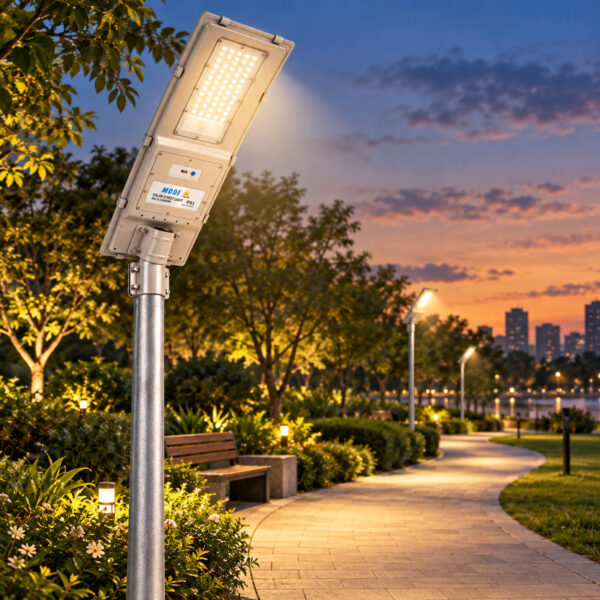

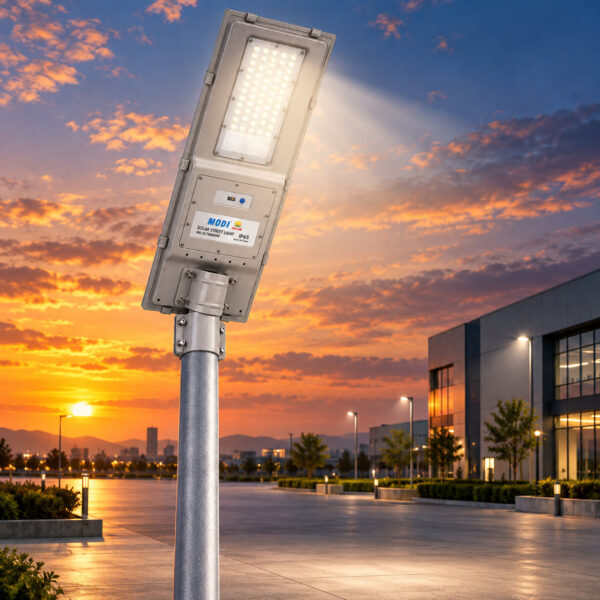

Pole or Wall Installation

The installation guide on page 2 shows two supported installation configurations:

Light pole installation – the fixture can be mounted to a suitable pole and adjusted to the appropriate angle.

Wall mounting – the fixture can also be installed on a wall using the mounting arm and appropriate fastening hardware.

For best solar charging performance, the solar panel should be positioned according to site conditions so it receives sufficient direct sunlight during the day.

Key Features

• Model: MD-SLT66600W
• Series: MD-SLT66
• Solar-powered integrated LED street light
• 4.5V 20W solar panel
• 3.2V 15Ah battery
• SMD LED light source
• 6500K color temperature
• Approximately 3–4 hours charging time
• Approximately 10–12 hours working time at full charge
• Approximately 3–5 cloudy/rainy days support
• Built-in light sensor
• Optical control
• Remote control
• Switch control
• 3H / 5H / 8H timer selection
• 90° beam angle
• IP65 protection
• Monocrystalline solar panel
• Wiring-free operation
• Pole-mounting capability
• Wall-mounting capability
• Suitable for outdoor applications

Technical Specifications

Specifications above are taken directly from the supplied MD-SLT66 Series product literature.

Suitable Applications

The MODI MD-SLT66600W Solar LED Street Light is suitable for:

Gardens, villas, yards, parks, pathways, walkways, residential communities, outdoor compounds, parking areas, farms, remote locations, commercial outdoor spaces, and other areas requiring independent solar-powered lighting.

Product Summary

The MODI MD-SLT66600W offers a practical solar lighting solution combining a 20W monocrystalline solar panel, 15Ah battery, SMD LED lighting, automatic sensor operation, remote control, timer functions, IP65 protection, and flexible pole or wall mounting.

Its integrated, wiring-free design makes it suitable for a wide range of outdoor lighting projects where easy installation, solar operation, and dependable nighttime illumination are required.
