Description

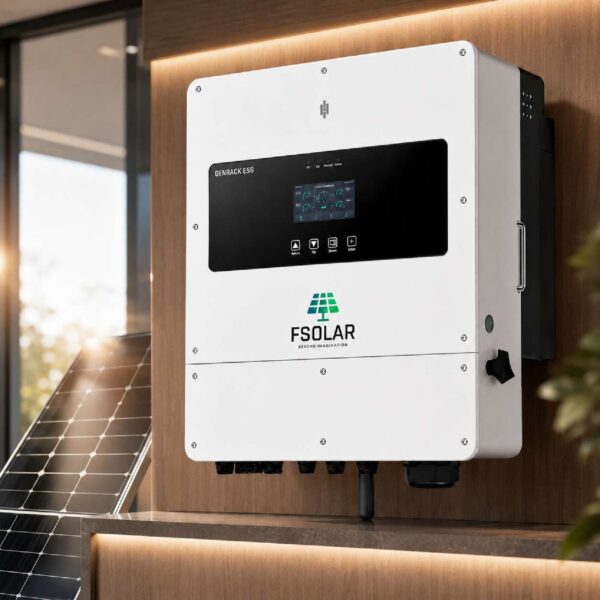

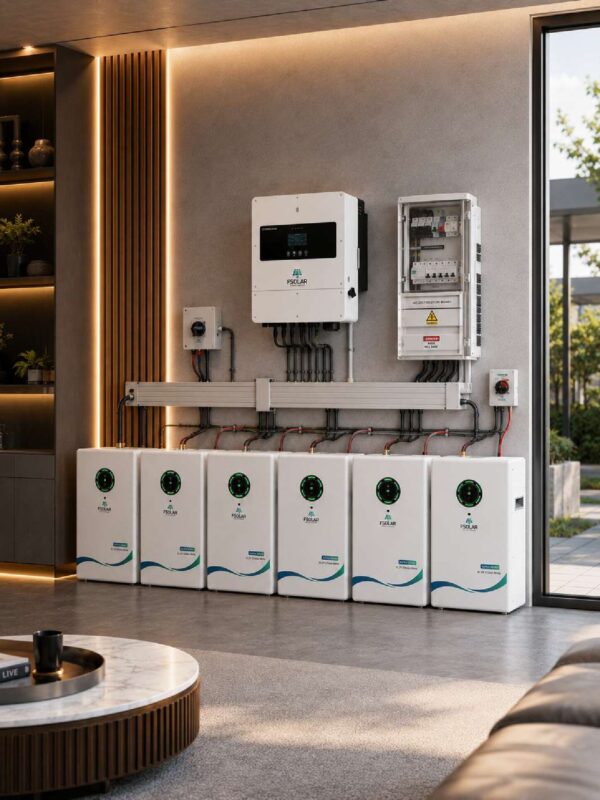

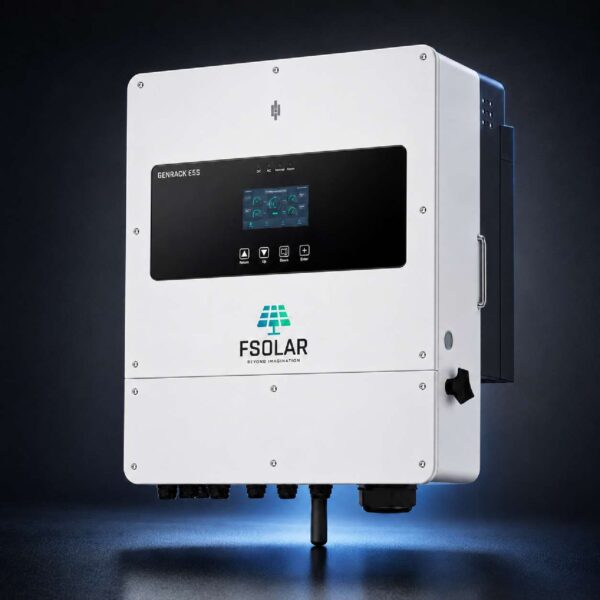

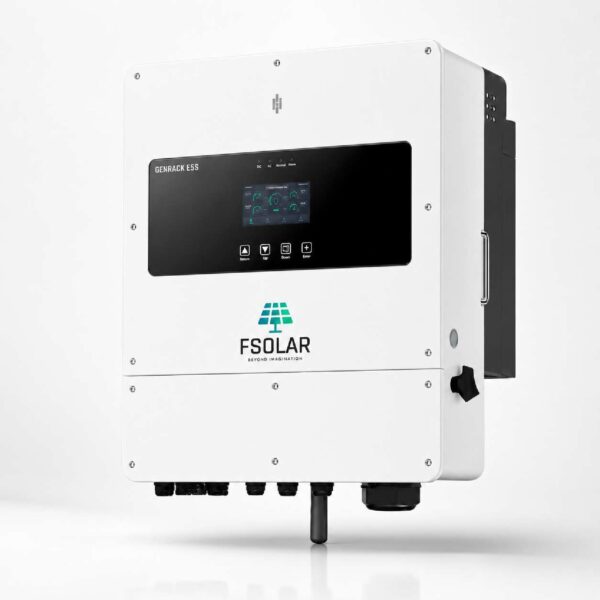

FSolar JUP G1 6kW Single-Phase Hybrid Solar Inverter

The FSolar JUP G1 6kW Single-Phase Hybrid Solar Inverter is a high-performance energy solution designed to manage power from solar panels, batteries, the utility grid, and a compatible diesel generator.

With a rated output of 6000W, maximum AC output of 7200W, and support for up to 9000W of solar-panel input, this inverter is suitable for homes, villas, shops, offices, farms, remote properties, and professional backup-power installations.

The inverter supports on-grid and off-grid operation, EPS emergency output, time-based battery charging and discharging, generator-assisted charging, and parallel system expansion.

Powerful 6kW Single-Phase Output

The FSolar JUP G1 delivers stable 230V single-phase AC power for household appliances, office equipment, pumps, lighting, refrigeration, electronics, and other compatible loads.

AC Output Performance

• Rated AC and UPS output power: 6000W
• Maximum AC output power: 7200W
• Peak off-grid power: 2 times rated power for 10 seconds
• Output voltage: 230V AC, single phase
• Output frequency: 50Hz / 60Hz
• Rated AC output current: 26.08A
• Maximum AC output current: 31.3A
• Maximum continuous AC pass-through current: 50A
• Power factor range: 0.8 leading to 0.8 lagging
• Current harmonic distortion: THD below 3%
• Maximum efficiency: 97.9%

The high peak-power capability helps the inverter support compatible equipment with demanding startup requirements.

Dual MPPT with 9kW PV Input

The inverter includes two independent MPPT solar trackers, allowing compatible solar-panel strings to be arranged across separate inputs for efficient solar-energy harvesting.

Solar Input Specifications

• Maximum PV input power: 9000W
• Nominal PV input voltage: 370V DC
• PV operating voltage range: 125V–500V DC
• MPPT operating range: 150V–425V DC
• PV startup voltage: 120V DC
• Maximum PV input current: 26A + 26A
• Maximum PV short-circuit current: 34A + 34A
• Number of MPPT trackers: 2
• Solar strings per MPPT: 2 + 2
• MPPT efficiency: 99.9%

Solar-panel strings must be designed so that the maximum open-circuit voltage remains within the permitted PV input range under all expected temperature and weather conditions.

140A Battery Charging and Discharging

The inverter supports high-current charging and discharging for compatible low-voltage energy-storage systems.

Battery Specifications

• Supported battery types: Lithium-ion and lead-acid
• Battery voltage range: 40V–60V DC
• Maximum battery charging current: 140A
• Maximum battery discharging current: 140A
• Charging curve: Three-stage charging with equalisation
• Lithium battery charging strategy: Automatic adaptation through BMS
• Optional external battery temperature sensor
• BMS communication: CAN and RS485

The charging and discharging currents must be configured according to the connected battery manufacturer’s permitted limits.

Time-Based Energy Management

The FSolar JUP G1 allows battery charging and discharging schedules to be configured according to the required operating times.

This functionality can help users:

• Charge batteries during selected periods
• Use stored energy during peak tariff hours
• Reserve battery capacity for emergencies
• Maximise the use of daytime solar production
• Control generator-assisted battery charging

On-Grid, Off-Grid and EPS Operation

The inverter supports flexible operating modes for different power requirements.

Supported Modes

• On-grid solar operation
• Off-grid solar operation
• Automatic on-grid and off-grid switching
• EPS emergency backup output
• Battery backup operation
• Solar self-consumption
• Grid-assisted charging
• Generator-assisted operation

The EPS output can supply selected essential loads during a utility power interruption.

Independent Generator Input

The inverter includes a dedicated AC input port for a compatible diesel generator. Generator power can be used to operate connected loads and store energy in the battery system.

This feature is particularly useful for remote locations, farms, workshops, and areas with an unstable electricity supply.

Parallel System Expansion

Up to 20 compatible inverter units can be connected in parallel for off-grid operation, allowing the system to be expanded for larger power requirements.

Parallel installations must use compatible inverter models and follow the approved wiring, communication, and programming procedures.

5-Inch Colour Touchscreen

The integrated 5-inch colour touchscreen provides convenient access to system settings and operating information, including:

• Solar-panel production
• Battery state
• Utility power status
• Generator status
• Connected load
• Charging and discharging information
• Energy flow
• Operating mode
• System warnings

Integrated Protection

The inverter includes several protection functions designed to improve system safety and operating reliability.

Protection Functions

• PV input lightning protection
• Anti-islanding protection
• PV string reverse-polarity protection
• Insulation-resistance detection
• Residual-current monitoring
• Output over-current protection
• Output short-circuit protection
• Output over-voltage protection
• Optional PV arc-fault detection

IP65 Enclosure

The inverter has an IP65 protection rating, providing resistance against dust and water exposure when correctly installed.

Its smart cooling system, low operating noise, and wide temperature range make it suitable for professional solar and battery-storage installations.

Key Features

• 6kW rated single-phase output
• 7.2kW maximum AC output
• Peak output of 2× rated power for 10 seconds
• 9kW maximum PV input
• Two independent MPPT trackers
• 26A + 26A maximum PV input current
• 140A maximum battery charging current
• 140A maximum battery discharging current
• Lithium-ion and lead-acid battery support
• CAN and RS485 BMS communication
• On-grid and off-grid operation
• EPS emergency backup output
• Independent generator input
• Generator energy storage support
• Scheduled battery charging and discharging
• Up to 20 compatible inverters in parallel
• 5-inch colour touchscreen
• IP65 protection
• Smart cooling
• Optional arc-fault detection
• Wall-mounted installation

Technical Specifications

The datasheet lists IP65 protection, smart cooling, noise of no more than 45dB, wall-mounted installation, dimensions of 514 × 665 × 292mm, and a weight of 35kg.

Suitable Applications

• Residential hybrid solar systems
• Villas and home backup systems
• Shops and commercial premises
• Offices and small businesses
• Farms and agricultural applications
• Off-grid homes and cabins
• Generator-supported solar systems
• Lithium battery energy-storage systems
• Lead-acid battery backup systems
• Expandable parallel inverter installations
