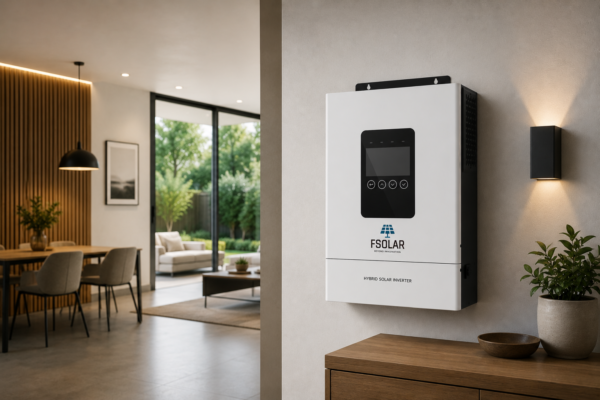

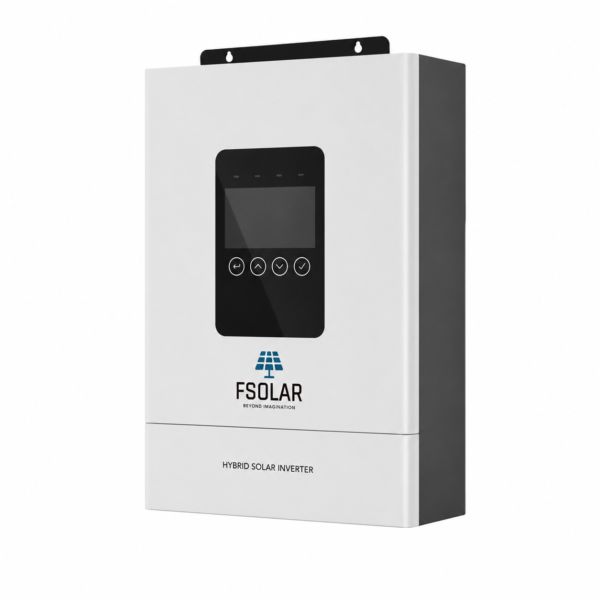

FSolar Atlantic F6.5 6.5kVA 48V Hybrid Solar Inverter

The FSolar Atlantic F6.5 is a powerful and versatile hybrid solar inverter designed to manage energy from solar panels, batteries, utility electricity, and compatible generators.

Operating with a 48V battery system, the Atlantic F6.5 provides dependable pure sine wave power for homes, shops, offices, farms, commercial premises, and off-grid installations. Its advanced energy-management design combines inverter output, MPPT solar charging, AC charging, battery communication, monitoring, and system expansion in one compact wall-mounted unit.

With a rated output capacity of 6.5kVA and surge power of up to 12kVA, the inverter can support a wide range of household and commercial appliances, including lighting, refrigerators, televisions, computers, office equipment, pumps, and other compatible electrical loads.

Pure Sine Wave Output

The Atlantic F6.5 produces clean and stable pure sine wave AC output, making it suitable for sensitive electronic equipment and modern electrical appliances.

AC Output Performance

• Rated output capacity: 6.5kVA
• Surge power: 12kVA
• Output voltage: 208V / 220V / 230V / 240V AC
• Power factor: 1
• Output waveform: Pure sine wave
• Maximum battery-mode efficiency: 94%
• Transfer time:
  • 10ms in appliance/UPS mode
  • 20ms in generator mode
• Overload capacity:
  • 1 minute at 102%–120% load
  • 10 seconds at 120%–200% load

Powerful 9000W MPPT Solar Input

The built-in MPPT solar charger supports up to 9000W of solar-panel input power, allowing the inverter to work with a substantial PV array.

Its wide MPPT operating range provides flexibility when designing compatible solar-panel strings while efficiently converting available solar energy for loads and battery charging.

Solar Input Specifications

• Solar charger type: MPPT
• Maximum PV input power: 9000W
• Maximum PV input current: 27A
• MPPT operating voltage range: 60V–450V DC
• Maximum PV open-circuit voltage: 500V DC
• Maximum PV charging current: 120A

Solar panels must be configured so that the total open-circuit voltage remains safely below 500V under all expected weather and temperature conditions.

120A High-Capacity Battery Charging

The FSolar Atlantic F6.5 supports powerful battery charging from solar energy, utility electricity, or a compatible generator.

Charging Performance

• Maximum PV charging current: 120A
• Maximum AC charging current: 120A
• Maximum combined PV and AC charging current: 120A
• Rated battery voltage: 48V DC

The charging current must be configured according to the battery manufacturer’s recommended limits.

Lithium and Lead-Acid Battery Compatibility

The inverter supports both lithium and lead-acid batteries, providing flexibility for different solar energy-storage applications.

It includes multiple communication interfaces for compatible lithium battery management systems and external equipment.

Battery and Communication Features

• 48V battery system
• Lithium battery compatibility
• Lead-acid battery compatibility
• RS232 communication
• RS485 communication
• CAN communication
• BMS communication support for compatible lithium batteries

Battery communication protocols and charging parameters should be confirmed before installation.

Parallel System Expansion

The Atlantic F6.5 supports parallel operation with up to nine compatible inverter units. This allows the system to be expanded for applications that require greater output capacity.

Parallel installation must use compatible matching units and follow the correct communication, wiring, and programming procedures.

Grid and Generator Support

The inverter can work with utility electricity and a suitable generator, providing additional charging and backup options when solar energy is insufficient.

Its flexible AC input range supports different power-source conditions:

• Normal input range: 90V–280V AC
• UPS input range: 170V–264V AC
• Input frequency: 50Hz / 60Hz, automatically adaptive

Built-In WiFi Monitoring

Built-in WiFi monitoring provides convenient access to compatible system information through an application or web platform. Users can monitor important operating data such as solar production, battery condition, load consumption, charging performance, and inverter status.

Large 5-Inch LCD Display

The integrated 5-inch LCD provides clear access to system information and inverter settings.

The display can show:

• Solar-panel input
• Battery status
• AC input condition
• Output power
• Connected load
• Charging performance
• Current operating mode
• System alerts and warnings

Key Features

• 6.5kVA rated output capacity
• 12kVA surge power
• 48V battery system
• Pure sine wave output
• Built-in MPPT solar charger
• Maximum 9000W PV input
• Wide 60V–450V MPPT operating range
• 500V maximum PV open-circuit voltage
• 27A maximum PV input current
• 120A maximum PV charging current
• 120A maximum AC charging current
• Lithium and lead-acid battery compatibility
• RS232, RS485, and CAN communication
• BMS support for compatible lithium batteries
• Parallel support for up to nine compatible units
• Built-in WiFi monitoring
• Large 5-inch LCD
• Utility and generator compatibility
• Maximum battery-mode efficiency of 94%
• Compact wall-mounted design

Technical Specifications

The datasheet specifies an IP21 enclosure, operating temperature from -10°C to 60°C, dimensions of 510 × 306 × 115mm, and a net weight of 8.4kg.

Suitable Applications

• Residential hybrid solar systems
• Home backup power systems
• Shops and commercial premises
• Offices and workspaces
• Off-grid solar installations
• Farms and remote properties
• Generator-supported power systems
• Lithium battery storage systems
• Lead-acid battery backup systems
• Expandable parallel inverter installations
