Xio 5KVA 24V Hybrid Solar Inverter Mppt 160A With Inbuilt Wifi Xio Pro 5

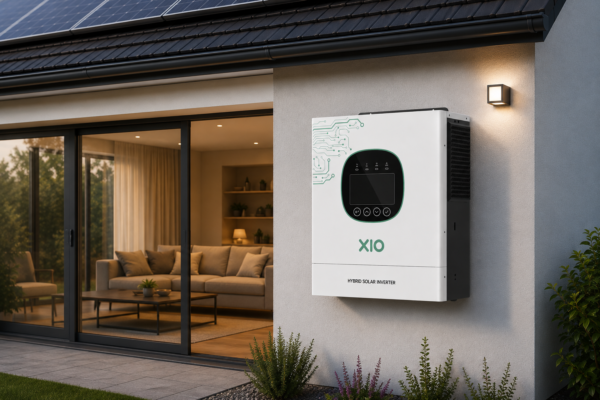

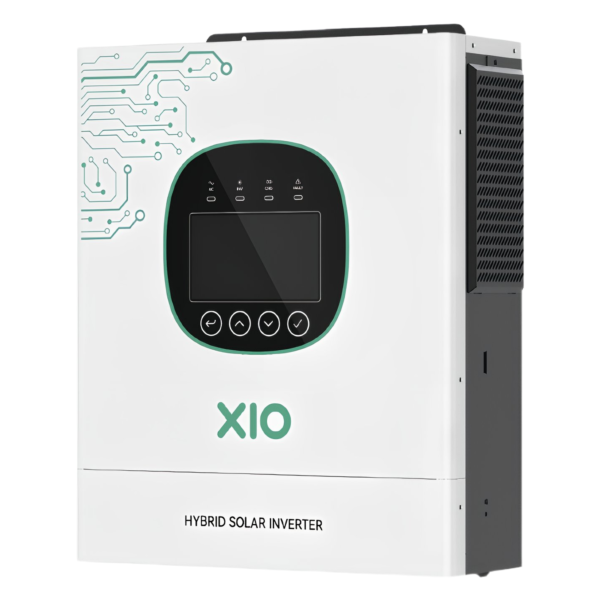

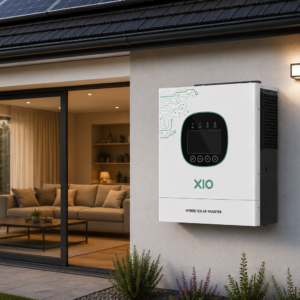

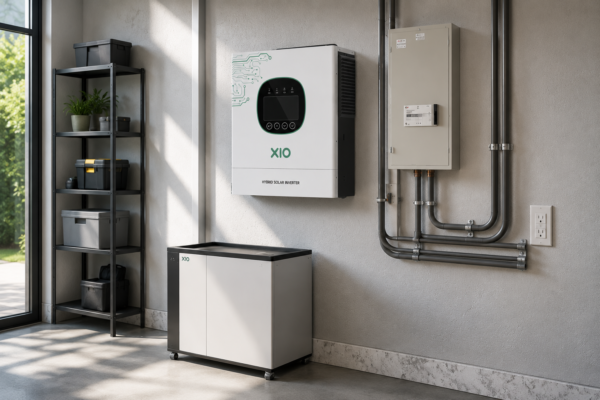

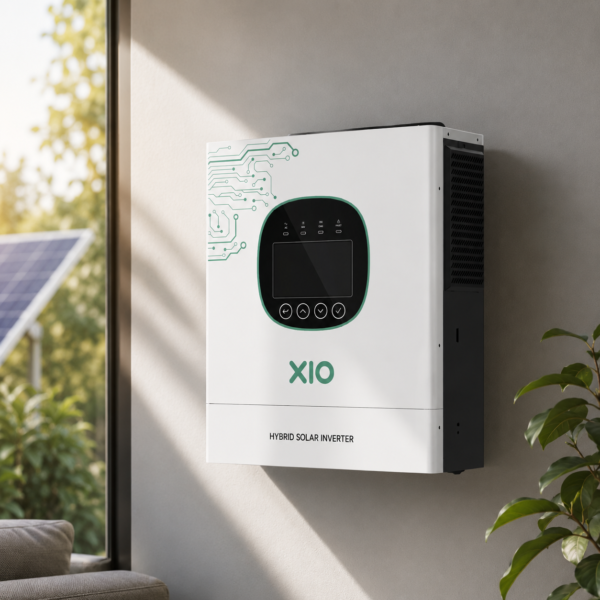

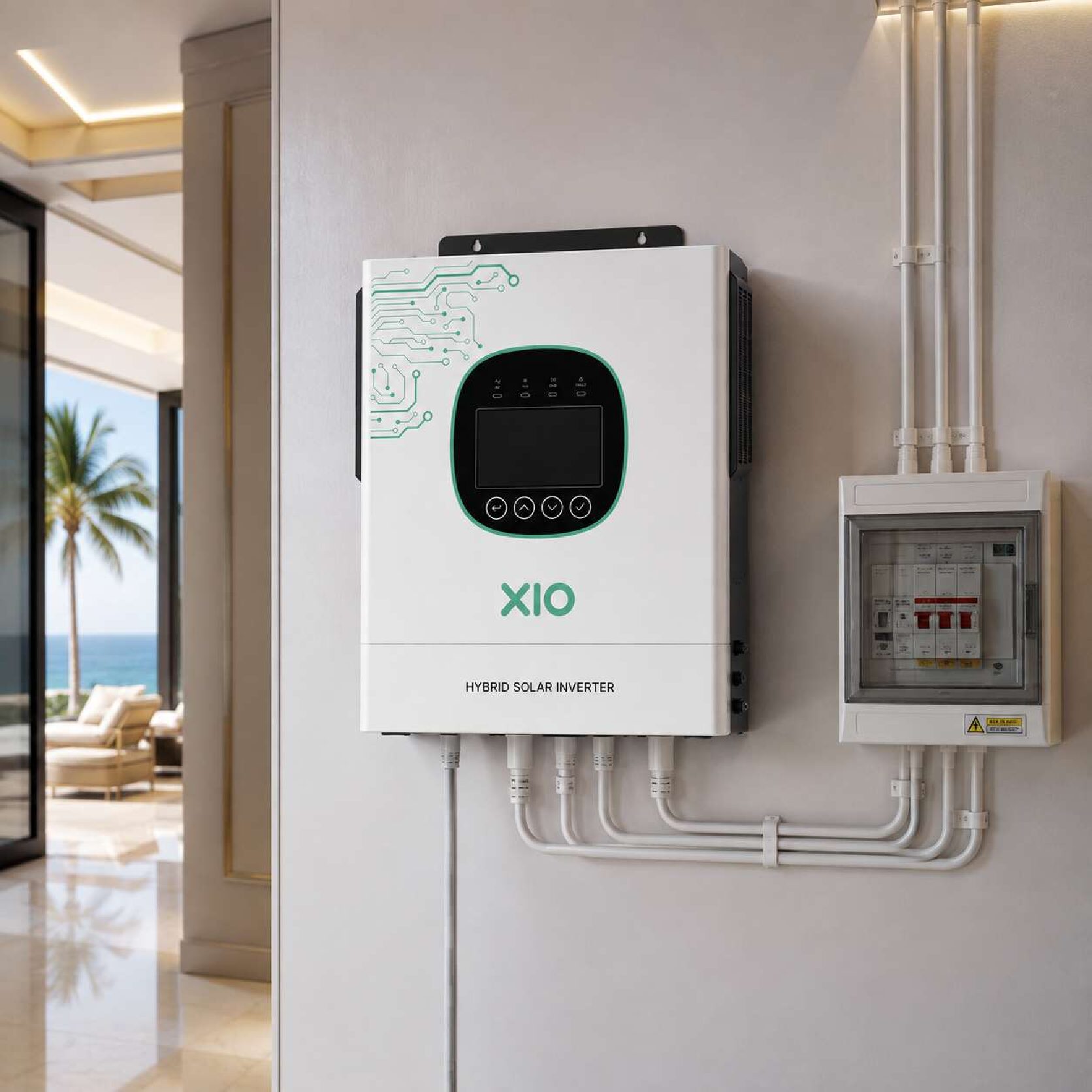

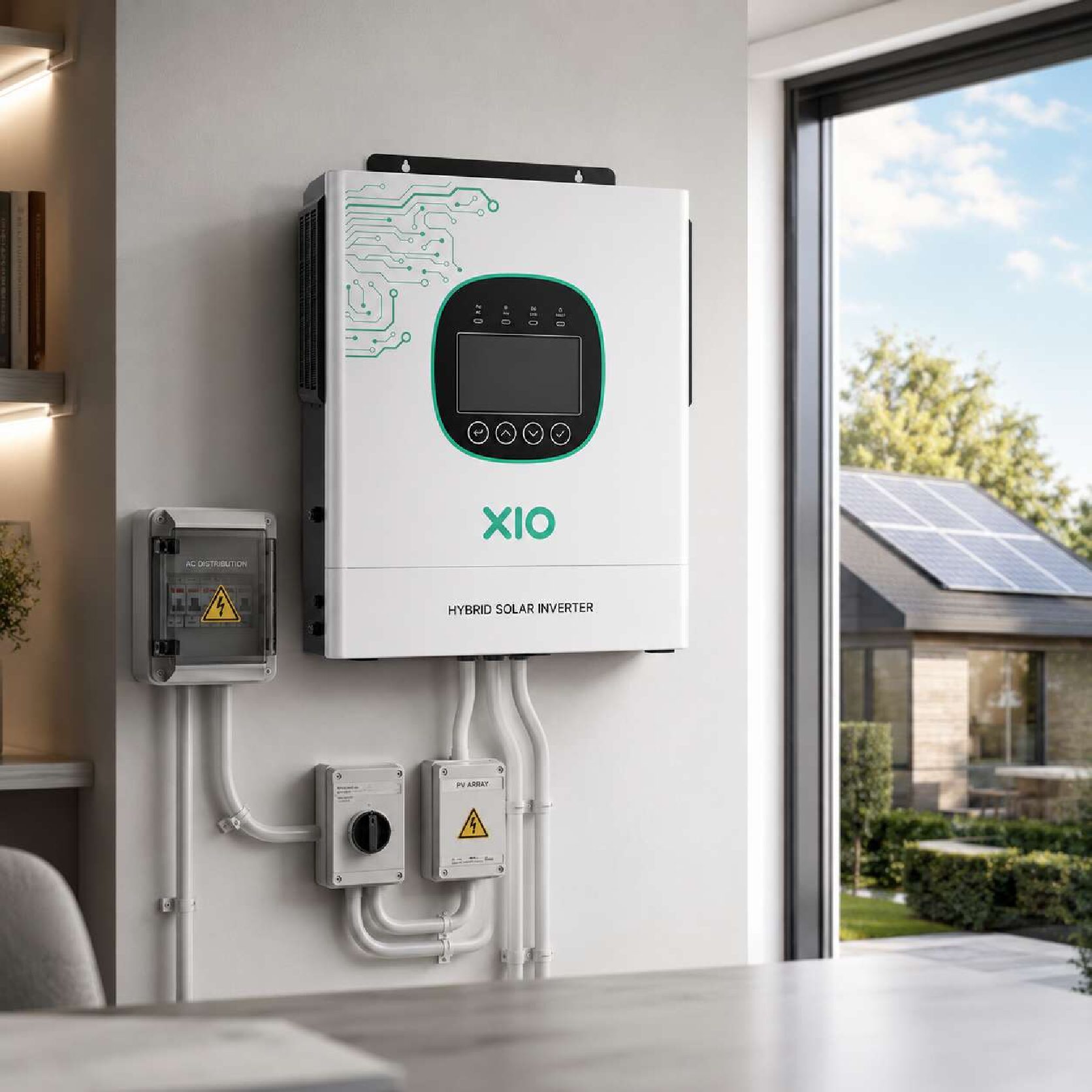

XIO Solar XIO PRO 5 – 5kW 24V Hybrid Solar Inverter

The XIO Solar XIO PRO 5 is a high-performance hybrid solar inverter designed to intelligently manage energy from solar panels, batteries, utility electricity, and compatible generators.

Operating with a 24V battery system, this inverter is suitable for homes, shops, offices, farms, remote properties, backup-power systems, and off-grid solar installations. It combines inverter output, MPPT solar charging, AC battery charging, battery communication, grid interaction, and system monitoring in one compact wall-mounted unit.

With a rated output capacity of 5kW and surge power of 10kVA, the XIO PRO 5 can support a wide range of compatible household and commercial loads, including lighting, televisions, computers, refrigerators, fans, office equipment, and other appliances.

Pure Sine Wave Output

The inverter delivers clean and stable pure sine wave AC power, making it suitable for sensitive electronics and modern electrical appliances.

AC Output Performance

• Rated output capacity: 5kW
• Surge power: 10kVA
• Output voltage: 208V / 220V / 230V / 240V AC
• Output frequency: 50Hz / 60Hz
• Power factor: 1
• Output waveform: Pure sine wave
• Maximum battery-mode efficiency: 93.5%
• Transfer time:
  • 10ms in appliance/UPS mode
  • 20ms in generator mode
• Overload capacity:
  • 1 minute at 102%–120% load
  • 10 seconds at 120%–200% load

High-Capacity 9000W MPPT Solar Input

The built-in MPPT solar charger supports up to 9000W of PV input power, allowing the inverter to operate with a substantial solar-panel array.

Its wide operating-voltage range provides flexibility when configuring compatible solar-panel strings while helping maximise available solar-energy production.

Solar Input Specifications

• Solar charger type: MPPT
• Maximum PV input power: 9000W
• Maximum PV input current: 27A
• MPPT operating range: 60V–450V DC
• Maximum PV open-circuit voltage: 500V DC
• Maximum PV charging current: 160A

Solar-panel strings must be designed so that their open-circuit voltage remains below the inverter’s maximum permitted PV voltage under all expected temperature and weather conditions.

Powerful 160A Battery Charging

The XIO PRO 5 supports high-current battery charging from both solar and AC sources.

Charging Capacity

• Maximum PV charging current: 160A
• Maximum AC charging current: 160A
• Maximum combined PV and AC charging current: 160A
• Maximum battery charging current: 160A
• Maximum battery discharging current: 190A

The actual charging current must be configured according to the connected battery manufacturer’s permitted charging limits.

Lithium and Lead-Acid Battery Support

The inverter is compatible with both lithium and lead-acid battery systems, providing flexibility for different energy-storage requirements.

It includes communication interfaces for compatible battery-management systems:

• RS232
• RS485
• CAN
• Lithium battery activation
• BMS communication support
• Rated battery voltage: 24V DC

Battery communication compatibility and the correct protocol must be confirmed before installation.

Dual AC Output

The dual AC output function allows connected loads to be separated according to priority.

Essential equipment can be connected separately from non-essential loads, helping conserve battery energy during extended power interruptions or periods of limited solar production.

Grid Feed-In Function

The XIO PRO 5 supports grid feed-in operation where permitted and correctly configured.

Grid-export operation must comply with local electricity-authority approvals, metering requirements, installation standards, and applicable regulations.

Generator Compatibility

The inverter can operate with a suitable generator, providing an additional energy source when solar production or utility electricity is insufficient.

This makes it suitable for:

• Remote properties
• Farms
• Workshops
• Off-grid installations
• Areas with unstable utility supply
• Generator-assisted battery charging

Built-In System Monitoring

Built-in monitoring allows compatible system information to be viewed through an application or web platform.

Users can monitor information such as:

• Solar-panel input
• Battery condition
• Charging status
• Connected load
• AC input and output
• Energy flow
• Inverter operating status
• System warnings

5-Inch Display

The integrated 5-inch display provides convenient access to inverter settings and essential operating information.

It helps users view the current operating mode, battery condition, solar production, load consumption, and charging performance.

Key Features

• 5kW rated output
• 10kVA surge power
• 24V battery system
• Pure sine wave output
• Built-in MPPT solar charger
• Maximum 9000W PV input
• Wide 60V–450V MPPT operating range
• 500V maximum PV open-circuit voltage
• 27A maximum PV input current
• 160A maximum solar charging current
• 160A maximum AC charging current
• 190A maximum battery discharge current
• Lithium and lead-acid battery compatibility
• Lithium battery activation
• RS232, RS485, and CAN communication
• Dual AC output
• Grid feed-in capability
• Generator-compatible operation
• Built-in system monitoring
• Large 5-inch display
• Compact wall-mounted design

Technical Specifications

The datasheet lists IP21 protection, an operating temperature range of -10°C to 60°C, dimensions of 410 × 336 × 110mm, and a net weight of 8.4kg.
