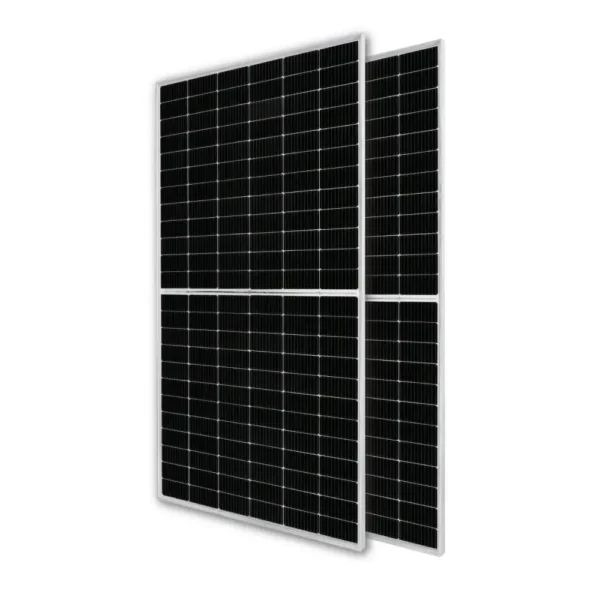

Osda Solar Panel 590 Watts 37 Pieces Bifacial Mono ODA590-36V-MHD 1 Pallet
Original price was: د.إ 14,400.00.د.إ 11,980.00Current price is: د.إ 11,980.00.
OSDA ODA-144MHD 590W N-Type Bifacial Solar Panel
Maximize your energy generation with the OSDA 590W N-Type Bifacial Solar Panel. Featuring advanced SMBB technology and a bifacial dual-glass design, this high-efficiency 22.83% module captures sunlight from both sides to increase overall power output by up to 25%. Built to endure extreme conditions, it boasts an IP68 waterproof rating, excellent anti-PID performance, and a robust anodized aluminium frame capable of withstanding heavy 5400Pa snow and 2400Pa wind loads.
- Description
Description
OSDA 590W N-Type Bifacial Solar Panel
The OSDA 590W N-Type Bifacial Solar Panel is a high-performance, dual-glass module engineered to deliver maximum power and reliability for your solar system. Utilizing 144 half-cut N-type monocrystalline cells, this panel achieves an outstanding efficiency of 22.83%. Its innovative bifacial design allows it to capture reflected light from the rear side, boosting total energy generation by 5% to 25% compared to standard single-sided panels.
Advanced Durability & Protection Designed to thrive in harsh environments, this module features a highly durable anodized aluminium alloy frame and dual 2.0mm glass construction. It offers excellent PID resistance and includes an IP68-rated waterproof junction box for superior protection. The panel easily withstands severe weather, bearing mechanical loads of up to 5400Pa for snow and 2400Pa for wind.
Key Technical Specifications:
-
Maximum Power (Pmax): 590W
-
Module Efficiency: 22.83%
-
Cell Type: 182x91mm N-Type Bifacial Mono (144 Cells)
-
Optimum Operating Voltage (Vmp): 42.67V
-
Optimum Operating Current (Imp): 13.83A
-
Dimensions: 2278 x 1134 x 30mm
-
Weight: 32.00kg
-
Operating Temperature: -40°C to +85°C
